Passive Network
Structured cabling solutions play a crucial role in establishing a standardized and organized network infrastructure within buildings or campuses. They involve the installation of a well-defined cabling system that supports various applications and services, such as data, voice, video, and other emerging technologies. Site certifications ensure that the structured cabling system meets industry standards and performance criteria. Here are details about structured cabling solutions with site certifications:
Structured Cabling Components
- Structured cabling adheres to industry standards, such as TIA/EIA-568 for commercial buildings or ISO/IEC 11801 for international standards. These standards define the specifications for cabling components and installation practices.
- Compliance with these standards ensures interoperability and performance.
- Structured cabling includes subsystems for horizontal cabling, vertical cabling, telecommunications rooms, and work area components. Each subsystem serves a specific purpose in the overall network infrastructure.
- Ensures that each subsystem is designed and installed according to best practices.

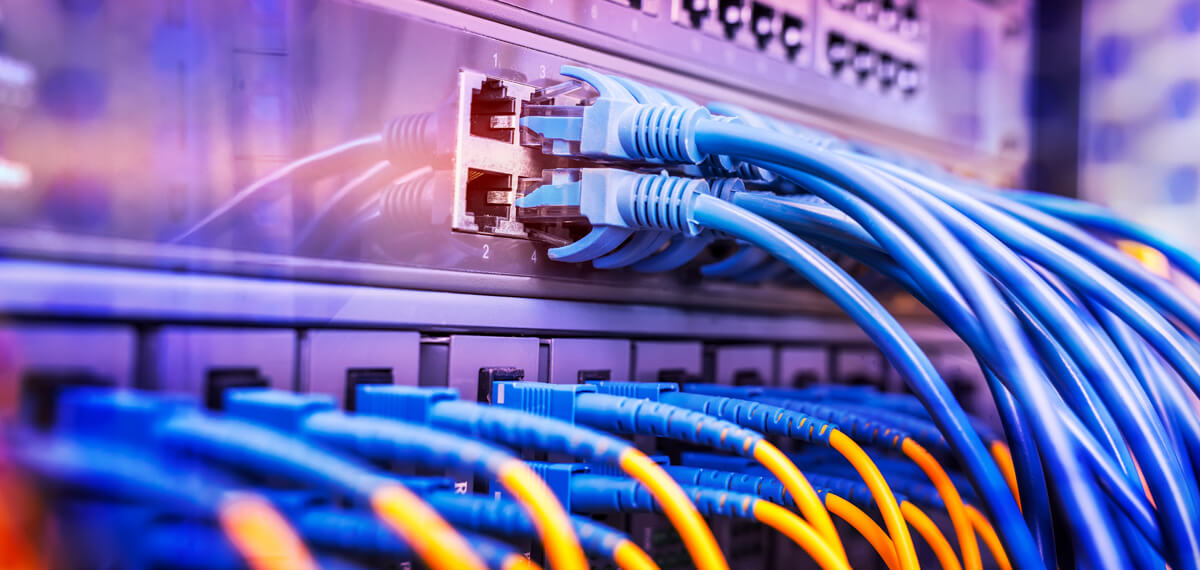

- Copper cabling, such as twisted pair cables (Cat5e, Cat6, Cat6a, Cat7), is commonly used for data and voice applications within buildings.
- Testing and certification ensure that copper cabling meets performance specifications, including parameters like attenuation and crosstalk.
- Fiber optic cabling provides high-bandwidth and long-distance connectivity. Common types include single-mode and multimode fibers.
- Testing verifies that fiber optic cabling meets specified optical performance parameters, such as insertion loss and reflectance.

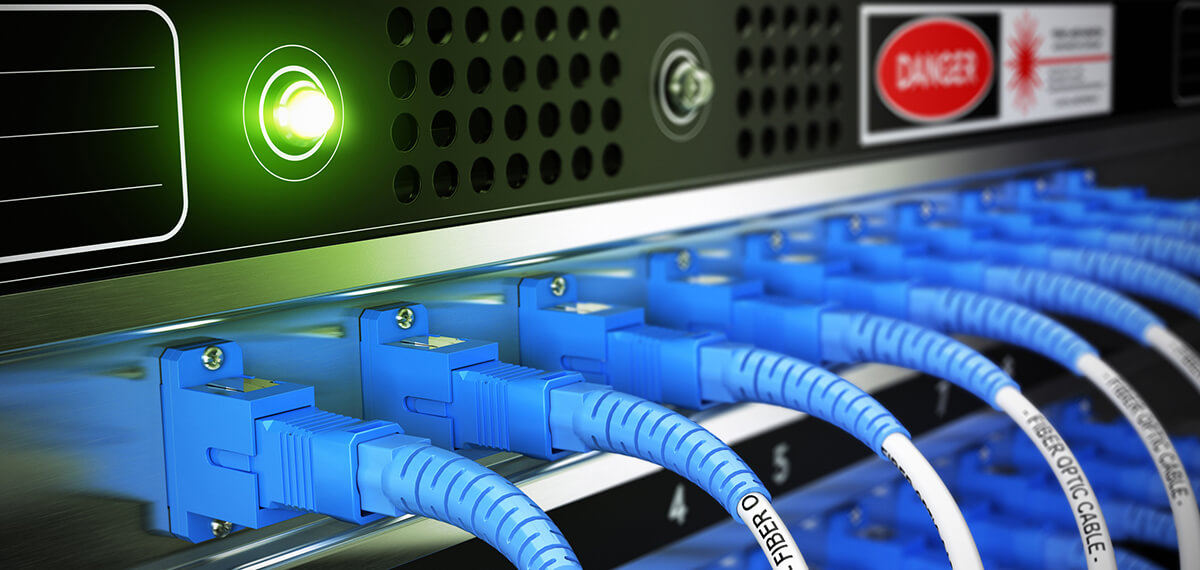

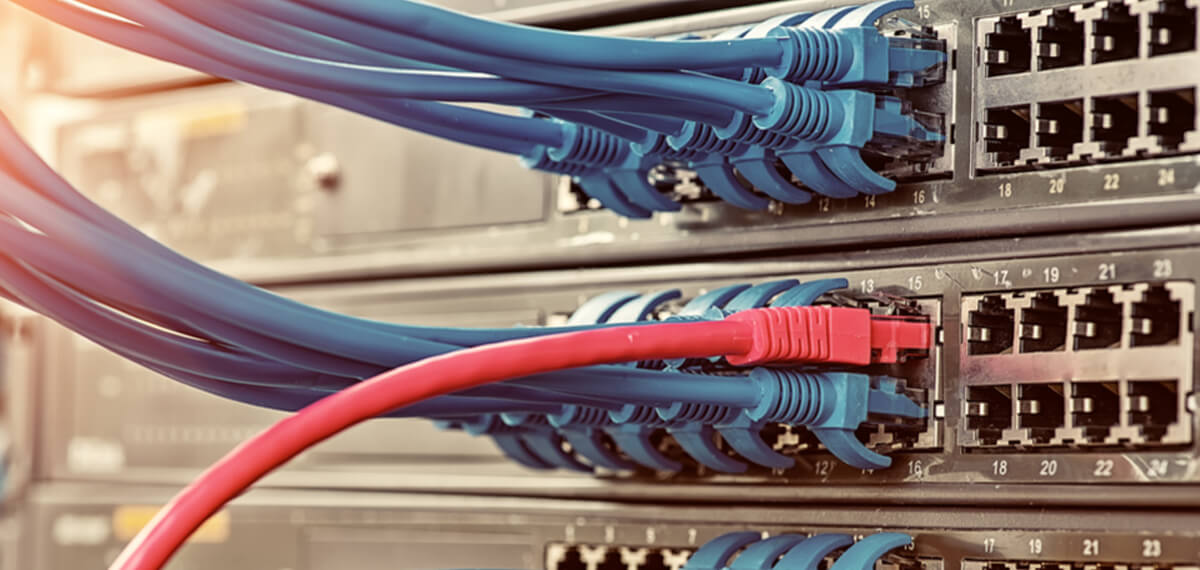

- RJ-45 connectors, fiber optic connectors (LC, SC, ST), and patch panels are key components for terminating and managing cabling connections.
- Ensures proper termination and adherence to industry standards.
- Cable management solutions, including trays, racks, and cable ties, are used to organize and secure cables within telecommunications rooms and equipment racks.
- Compliance with cable management best practices ensures a neat and well-organized cabling infrastructure.
Certification and Testing
- Cable certification involves testing the installed cabling infrastructure to ensure it meets specified performance criteria. This includes parameters like attenuation, NEXT (Near-End Crosstalk), and ACR (Attenuation to Crosstalk Ratio).
- Cable certifiers, such as Fluke Networks' Versiv or EXFO's Certifier, are used for comprehensive testing.
- Fiber optic testing involves measuring parameters like optical power, attenuation, and reflectance to ensure the proper functioning of fiber optic links.
- Optical time-domain reflectometers (OTDRs), light sources, and power meters are used for fiber optic testing.
- After installation and testing, a site may receive certifications such as TIA-942 for data center design and ANSI/BICSI 007 for intelligent building design.
- Certification bodies, such as BICSI (Building Industry Consulting Service International) or TIA (Telecommunications Industry Association), may conduct site audits to verify compliance with standards.
Documenting and Labeling
- Proper documentation includes as-built drawings, cable schedules, and labeling schemes. This documentation aids in the maintenance and troubleshooting of the cabling infrastructure.
- Documentation is crucial for compliance with industry best practices.
- Labels on cables and network equipment provide essential information for easy identification and troubleshooting.
- Adherence to labeling standards, such as TIA-606-B, ensures consistency and clarity.
Maintenance and Upkeep
- Regular inspections of the cabling infrastructure help identify issues and ensure continued performance.
- A well-maintained infrastructure contributes to ongoing compliance with standards.
Compliance with Regulations
- Compliance with local, regional, and national regulations, including building codes and safety standards, is essential for a structured cabling solution.
- Ensures legal and safety compliance.
Structured cabling solutions with site certifications are critical for ensuring the reliability and performance of the network infrastructure within buildings or campuses. Compliance with industry standards, thorough testing, proper documentation, and adherence to best practices contribute to a robust and efficient cabling system. Certification processes validate that the installed infrastructure meets or exceeds the requirements set by industry organizations and standards bodies.
Active Network
In a network architecture, especially in enterprise setups, the network is often structured into different layers, each serving a specific purpose. Core switches, distribution switches, and access switches are common components in this hierarchical design. Additionally, Power over Ethernet (PoE) is a technology that allows network cables to carry electrical power, enabling devices like IP phones and cameras to be powered through the same Ethernet cable that provides network connectivity.
-
- The core switch is a high-capacity switch responsible for forwarding traffic at the core or backbone of the network.
- It connects various distribution switches and provides high-speed, low-latency connectivity.
-
- High throughput and low latency.
- Typically operates at high speeds (e.g., 10Gbps, 40Gbps, or 100Gbps).
- Designed for reliability and minimal downtime.
-
- Interconnecting distribution switches.
- Handling large volumes of data traffic between different parts of the network.
-
- The distribution switch aggregates network traffic from access switches and routes it towards the core switch.
- It may provide additional features such as VLAN (Virtual Local Area Network) segmentation, routing, and access control.
-
- Aggregation of access layer connections.
- Layer 3 routing capabilities.
- VLAN segmentation for network organization.
-
- Connecting multiple access switches.
- Implementing inter-VLAN routing.
- Routing between different subnets.
-
- Access switches connect end-user devices, such as computers, printers, and IP phones, to the local network.
- They typically operate at lower speeds compared to distribution and core switches.
-
- Fast Ethernet (10/100Mbps) or Gigabit Ethernet (1Gbps) ports.
- PoE functionality to power IP phones, cameras, and other devices.
- Port security features to control access.
-
- Connecting devices in a local area network.
- Providing connectivity for end-user devices.
-
- PoE is a technology that enables the transmission of electrical power alongside data over Ethernet cables.
- Devices like IP phones, cameras, and access points can be powered using PoE, eliminating the need for separate power cables.
-
- Simplifies cabling infrastructure by providing power and data over a single cable.
- IEEE standards (e.g., 802.3af, 802.3at) define PoE specifications.
- PoE+ (802.3at) provides higher power levels than standard PoE (802.3af).
-
- Powering IP phones in VoIP (Voice over Internet Protocol) deployments.
- Powering IP cameras for surveillance.
- Providing power to Wi-Fi access points.
-
- Non-PoE switches do not have Power over Ethernet capabilities.
- They are used in scenarios where devices are powered through traditional electrical outlets.
-
- Standard Ethernet functionality without power delivery.
- Typically used in situations where PoE is not required.
-
- Networks where devices have access to separate power sources.
- Environments where PoE is not necessary for device connectivity.
-
- PoE switches may have a higher upfront cost due to the additional power delivery capabilities.
-
- PoE provides flexibility in device placement since it eliminates the need for proximity to electrical outlets.
-
- Ensure that devices connected to PoE switches are compatible with the specific PoE standard supported by the switch (e.g., 802.3af or 802.3at).
-
- The hierarchical design with core, distribution, and access layers helps in scalable and organized network architecture.
-
- Consider the scalability of the network design to accommodate future growth in terms of devices and data traffic.
Managed Wireless Solution
Managed controller-based wireless solutions refer to wireless networks where the control and management of access points (APs) are centralized through a dedicated hardware device called a wireless LAN (Local Area Network) controller. This approach offers several advantages, including centralized management, efficient control, and seamless roaming. Here are details about managed controller-based wireless solutions:
-
- A Wireless LAN Controller (WLC) is a dedicated hardware or software device responsible for managing and controlling multiple wireless access points in a network.
- It centralizes the configuration, monitoring, and maintenance of the entire wireless infrastructure.
-
- Centralized Management: All configuration and management functions are handled by the WLC.
- Dynamic RF (Radio Frequency) Management: Optimizes channel assignments and power levels for APs to reduce interference.
- Seamless Roaming: Provides a smooth handoff of clients between different APs without interruption.
- Wireless Security: Implements security policies, encryption, and authentication centrally.
-
- Access points are the physical devices that allow wireless devices to connect to the network. In a managed controller-based solution, APs are centrally controlled by the WLC.
-
- Lightweight APs: APs in this architecture are often referred to as "lightweight" because they offload much of their intelligence to the WLC.
- Automatic Configuration: APs receive configuration settings and updates from the WLC.
- Single Point of Configuration: All APs are configured and managed through the WLC.
- The WLC stores and manages the configuration settings for all APs, ensuring consistency and ease of management.
- The WLC dynamically adjusts the channel and power settings of APs to optimize wireless coverage and performance.
- The WLC assigns channels to APs based on real-time RF conditions to minimize interference.
- The WLC can distribute client devices across multiple APs to balance the load and optimize performance.
- The WLC enforces security policies, manages encryption keys, and provides authentication services for connected devices.
- Simplifies the configuration and monitoring of the entire wireless network from a single point.
- Centralized security policies and authentication reduce the risk of vulnerabilities.
- Clients can move between APs without losing connectivity or experiencing service interruption.
- Dynamic management features optimize channel assignments and power levels for better performance.
- Managed controller-based solutions are scalable and well-suited for medium to large-scale deployments with multiple APs.
- High-availability features such as controller redundancy ensure continuity in case of controller failure.
- Considerations for AP placement, coverage, and capacity planning are critical for an effective deployment.
- The WLC can be a single point of failure, and redundant controllers are often deployed for failover.
- Managed controller-based solutions may have a higher upfront cost due to the need for dedicated hardware controllers.
- APs may lose some functionality if they cannot communicate with the WLC.
- Managed controller-based solutions are commonly deployed in large enterprises where centralized management is essential.
- Educational institutions and corporate campuses benefit from the centralized control and seamless roaming.
- Hospitals and healthcare facilities use these solutions for reliable and secure wireless communication.
- With the evolution of wireless technologies, cloud-managed solutions are gaining popularity. These solutions offer similar benefits but with cloud-based management, reducing the need for on-premises controllers.
Managed controller-based wireless solutions continue to evolve, adapting to the changing needs of organizations for efficient, secure, and scalable wireless network deployments.
